BUS AIR CONDITIONER AC Assembly Schooling BUS Roof Top Air Conditioner 34KW for 12-13m BUS

With NVH simulation analysis,the wind field and the flow field are greatly optimized.The unit has powerful cooling capability for the complete vehicle,and its NVH performance and cooling capacity surpass the international first-class competitive products.

Category: Bus Air Conditioner

Send Email Contact Us

BUS AIR CONDITIONER AC Assembly Schooling BUS Roof Top Air Conditioner 34KW for 12-13m BUS

Description

Product Paramenters

Model	EZDD-04	EZDS-04	EZDS-05	EZDS-06	EZDS-07
Cooling Capacity	15000kcal/h; 18kW; 60000BTU/h	24000kcal/h; 28kW; 96000BTU/h	28000kcal/h; 33kW; 112000BTU/h	32000kcal/h; 37kW; 127000BTU/h	38000kcal/h; 44kW; 151000BTU/h
Heating Capacity	14000kcal/h; 16kW; 56000BTU/h	22000kcal/h; 26kW; 88000BTU/h	26000kcal/h; 30kW; 104000BTU/h	30000kcal/h; 35kW; 120000BTU/h	36000kcal/h; 42kW; 143000BTU/h
HV Platform (V)	400-750	400-750	400-750	400-750	400-750
LV Platform (V)	24	24	24	24	24
Evaporator Airflow（m³/h)	4000(4pcs)	4000(4pcs)	6000(6pcs)	6000(6pcs)	8000(8pcs)
Condenser Airflow（m³/h)	6000(3pcs)	8000(4pcs)	8000(4pcs)	10000(5pcs)	10000(5pcs)
Refrigerant	R407C	R407C	R407C	R407C	R407C
Weight (kg)	185	245	275	305	325
Size（mm) LxWxH	27001630240	27502000260	30002000260	32502000260	32502000260
Application (m)	6-7	7.5-9	9-10	10-12	12-13

Product Advantages

1.With NVH simulation analysis,the wind field and the flow field are greatly optimized.The unit has powerful cooling capability for the complete vehicle,and its NVH performance and cooling capacity surpass the international first-class competitive products.

2.The unprecedented structural reconstruction and mechanical analysis strives to be extremely flexible,without any to spare,and with more than 30%lighter than similar products.

3.The"customer-centered"cultural concept is integrated into product design,so that reduces installation,repair and maintenance working hours by more than 50%,and successfully realizes quick assembly,disassembly and repair by one person.

4.The filter material adopts the composite double-layer structure(frame and meltblown layer)and the electrostatic electret treatment process,to effectively filter PM2.5 particulate matter,and add strong barrier for the safety of public travel environment.

Product Details

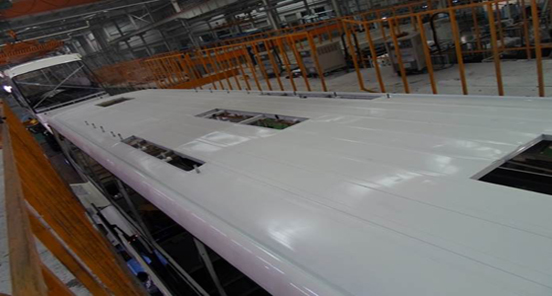

Preparation

*First clean the rooftop surface,then put glue to install the sponge and rubber pad,later put glue with a glue gun around the sponge.

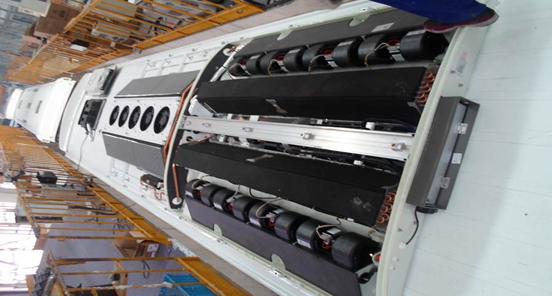

Evaporator and Condensor Installation

Lift the condensor and evaporator to the top of the bus,install and connect the pipes and wiring harness,then fix the condesor and evaporator to the bus rooftop,put glue for sealants where needed.

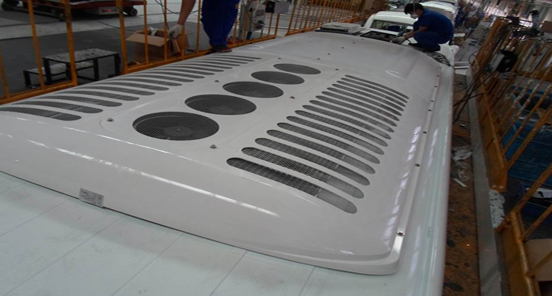

Cover Installation

Move the cover to the top of condensor and evaporator,check the position and drop the cover,fix screws and check the gap to follow requrements.
